GRIDRACK™ Tri Level Slider
Introducing the GRIDRACK™ Tri Level Slider, the ultimate pickup truck accessory designed to conquer any terrain. Built tough with our proprietary GRIDRACK™ Grid Technology and robust steel construction, this bed slide is here to revolutionize your truck bed experience, no matter where your adventures take you.
Crafted to withstand the most demanding jobs, the GRIDRACK™ Tri Level Slider is stamped from high-strength steel, and has a 1500 lb. load capacity. It offers three adjustable positions, each tailored to tackle your specific needs.
Get notified when products become available
Get Notifications
Description
GRIDRACK™ Tri Level Slider

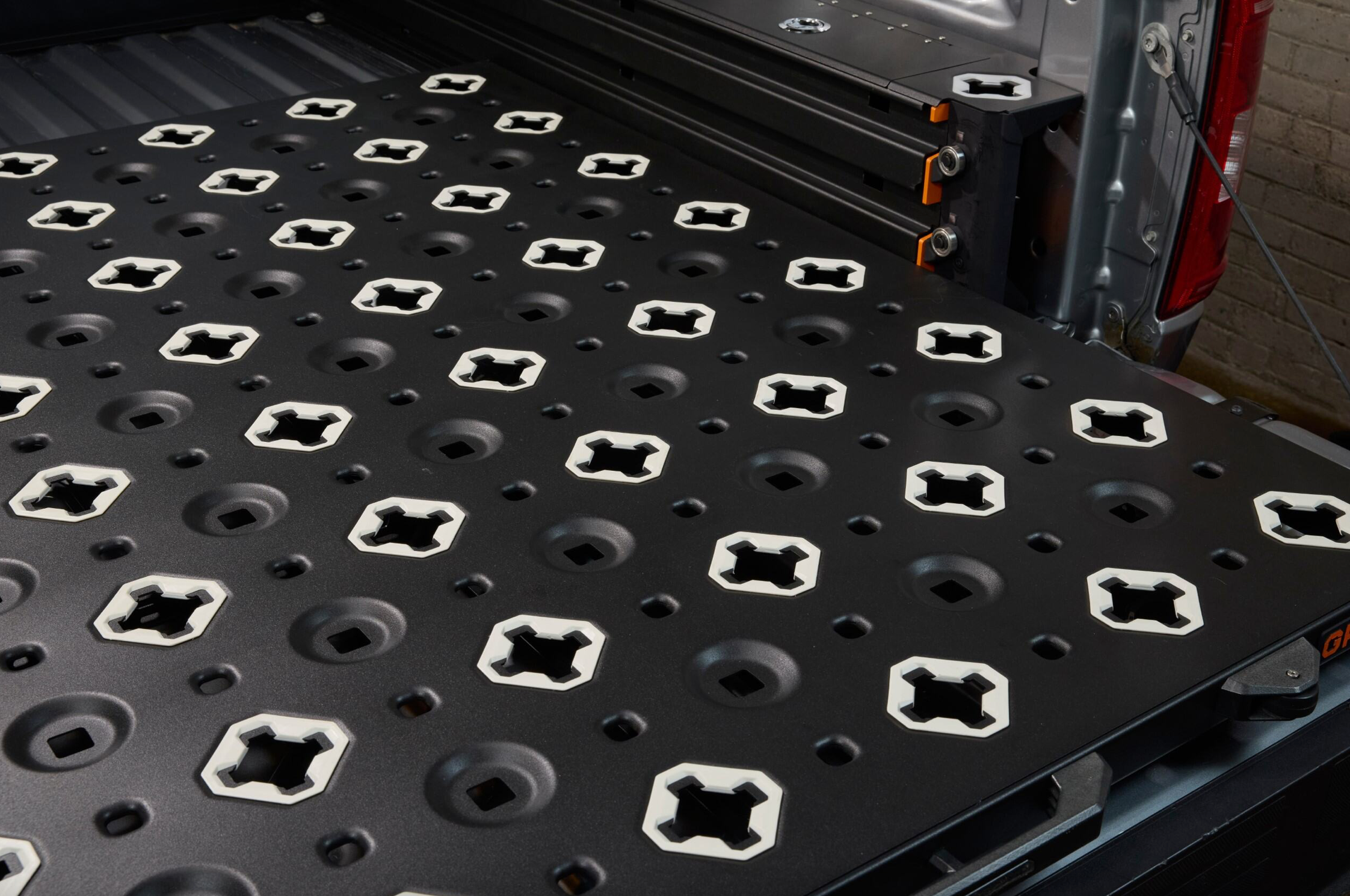

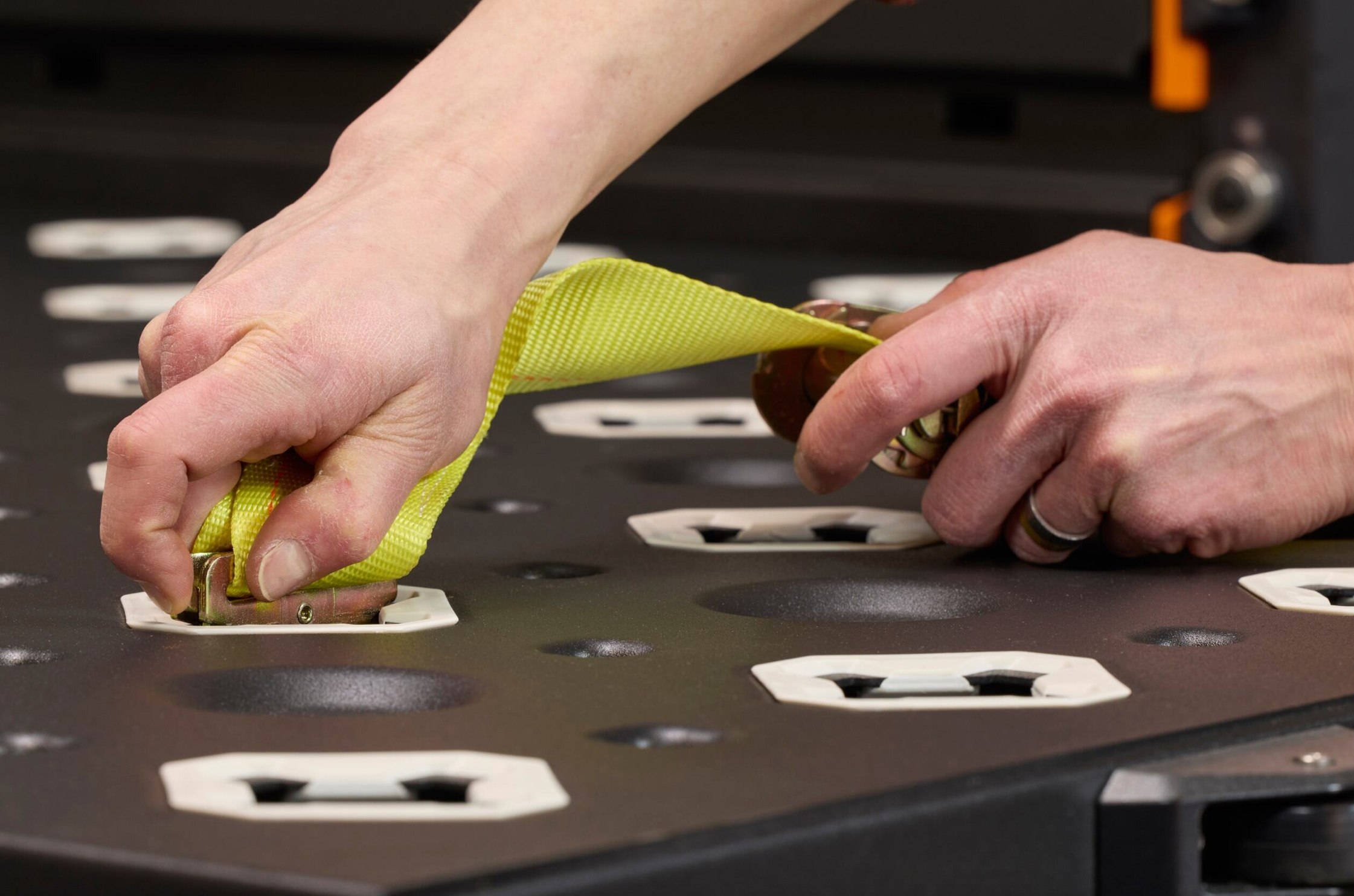

Unleash the full potential of your truck bed with our innovative GRIDRACK™ Tri Level Slider. Equipped with diamond cut-outs on the slider, it effortlessly integrates with an array of already-available accessories and GRIDRACK™ storage products. This unique feature empowers you to customize your truck bed organization to fit your lifestyle. Lock in your GRIDRACK™ accessories anywhere on the platform, and rest easy knowing your cargo will stay securely fastened.
But the support doesn't end there. GRIDRACK™ Tri Level Slider seamlessly connects to your truck's battery, unleashing the full power of your vehicle. Add a GRIDRACK™ Power Puck to any of the circular depressions on your slider, and you'll have access to inductive power right on the platform for any of our connected smart products. This game-changing feature allows you to harness the full potential of our lineup of GRIDRACK™ Smart Products, all controlled conveniently through the GRIDRACK™ app. Bring power and connectivity to all corners of your truck bed and experience enhanced functionality and unrivaled convenience on your off-road escapades.
- 2015 and newer Ford F-150®
- 2018 and newer Ford Super Duty® (F-250®, F-350®, F-450®)
- Compatible with Pro Power Onboard
1500 lbs
70%
E-coated & powder-coated high strength steel panel
Ford F-150® 5.5': 112.92
Ford F-150® 6.5': 136.2
Super Duty® 6.75': 136.71 lbs
- Ford F-150® 5.5': 52 GRIDRACK™ Diamond connection points
- Ford F-150® 6.5': 58 GRIDRACK™ Diamond connection points
- Super Duty® 6.75': 58 GRIDRACK™ Diamond connection points
Compatible with all GRIDRACK™ Accessories
Ford F-150® 5.5':
- Length: 65.3" panel only, 67.1" with handle
- Width: 48.3" at lower and middle levels, full width of truck bed at upper level
- Height: 0"-3.5" - removable bed slide adds no height when removed and is 3.5" or less when at the lowest level
Ford F-150® 6.5'
- Length: 77.1" panel only, 78.9" with handle
- Width: 48.3" at lower and middle levels, full width of truck bed at upper level
- Height: 0"-3.5" - removable bed slide adds no height when removed and is 3.5" or less when at the lowest level
Super Duty® 6.75'
- Length: 80.0" panel only, 82.0" with handle
- Width: 48.3" at lower and middle levels, full width of truck bed at upper level
- Height: 0"-3.5" - removable bed slide adds no height when removed and is 3.5" or less when at the lowest level
GRIDRACK™ Tri Level Slider makes loading and unloading of a standard pickup truck easier and more efficient.
I was able slide the GRIDRACK™ Tri Level Slider out, load the truck, & slide it right back in! This was easier than having to physically push the items back.

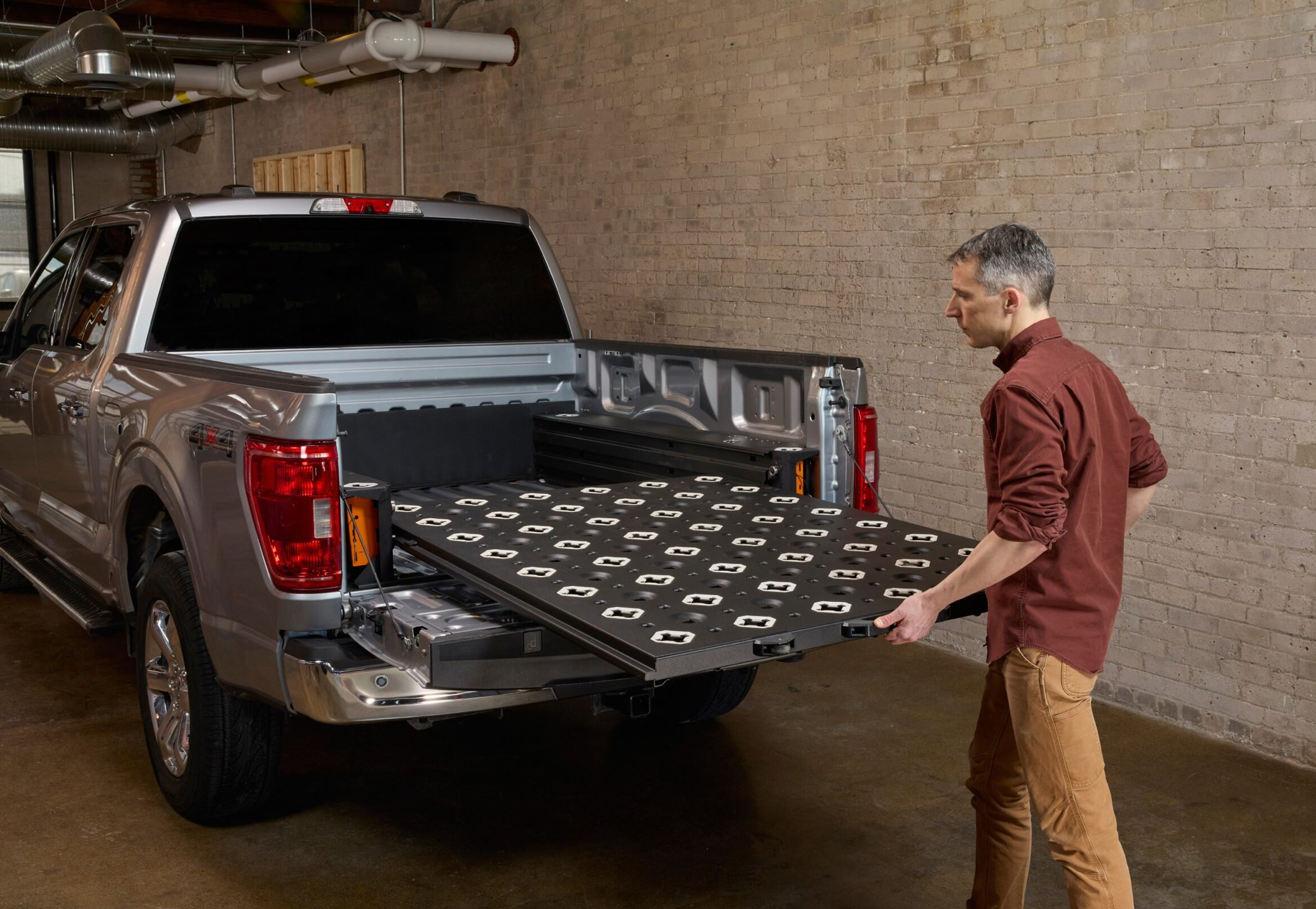

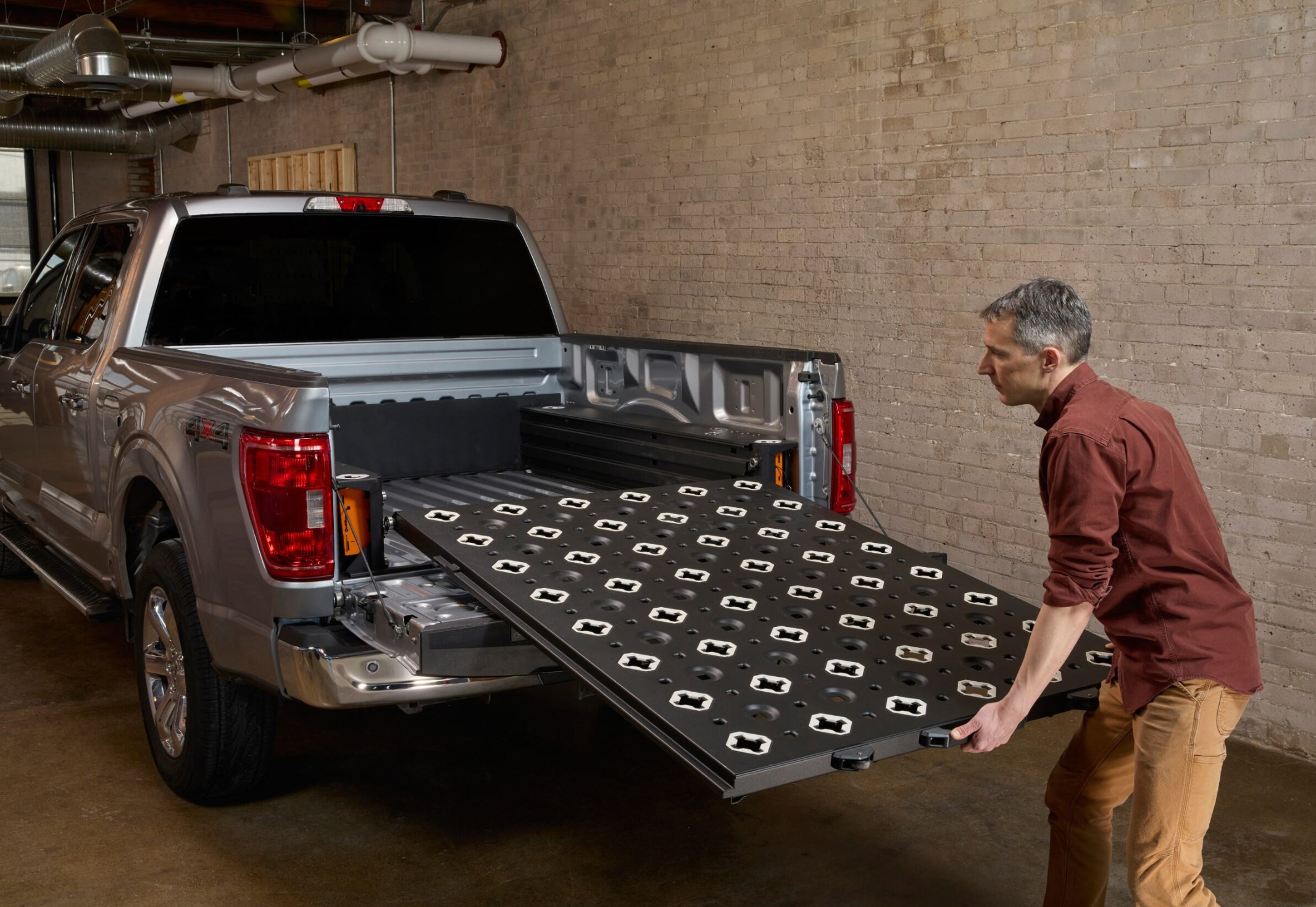

Being able to access the entire bed of the truck is amazing. I love that with one hand, I can unlatch, pull out, and grab everything I need from the very back.
FAQ
How far does the GRIDRACK™ Tri Level Slider Extend?
GRIDRACK™ Tri Level Slider can extend to 70% on all three levels and, by simply removing the slider stop plates, you can remove the slider completely.
I see the slider has multiple stop positions, how many and where are they?

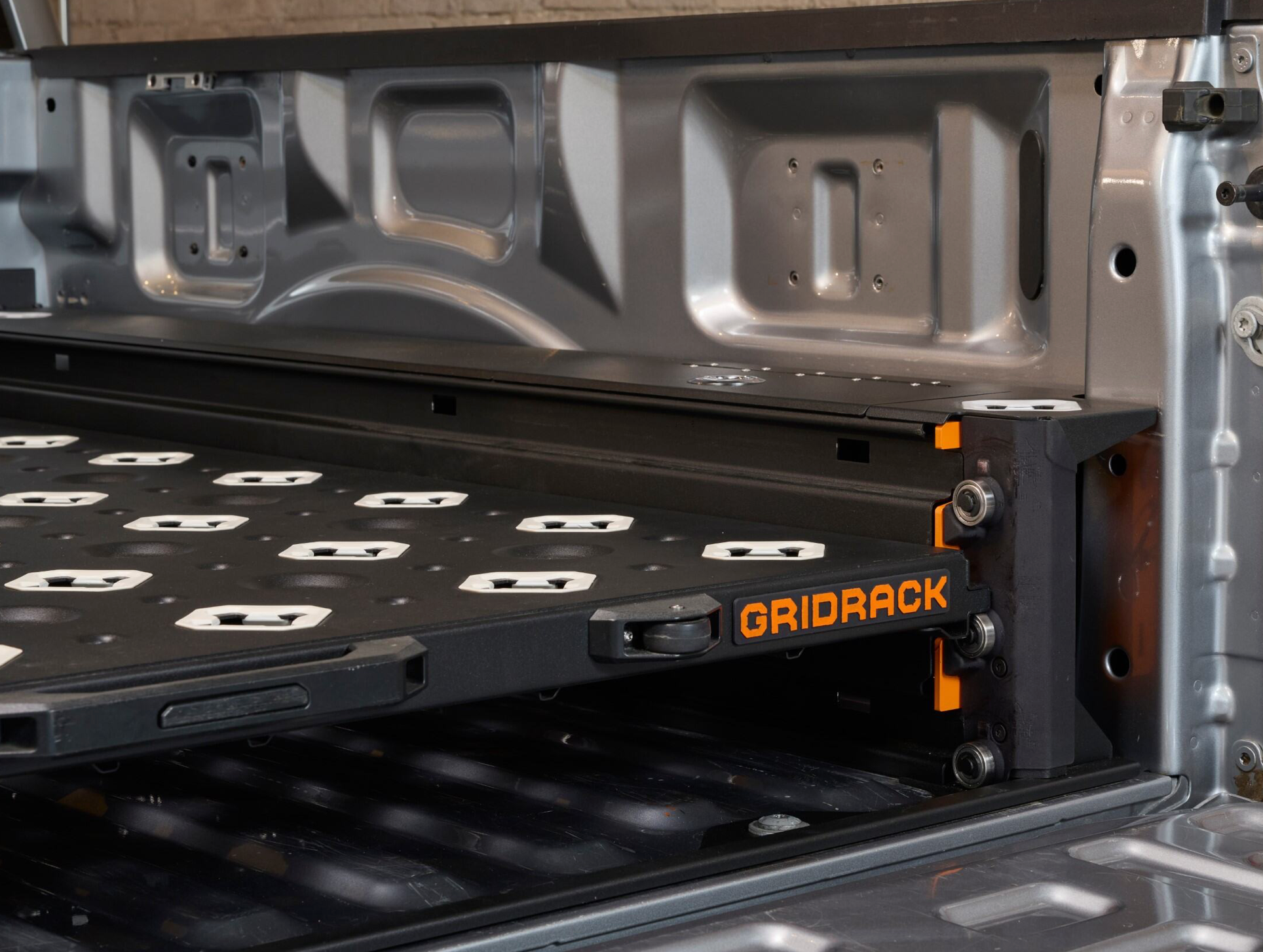

GRIDRACK™ Tri Level Slider has 3 stop positions total: fully closed, even with tailgate, and fully extended (70% extension)
How does the GRIDRACK™ Tri Level Slider provide power?
If you add on the electrical package, the slider connects directly to your truck’s battery with a wiring harness. Once you add power pucks in any of the circular depressions, you can charge anything that can charge wirelessly!
What can the inductive charging pucks charge?
The power pucks can charge the GRIDRACK™ Smart Box and other future GRIDRACK™ Smart accessories. It can also charge any of your current gadgets that can charge wirelessly!

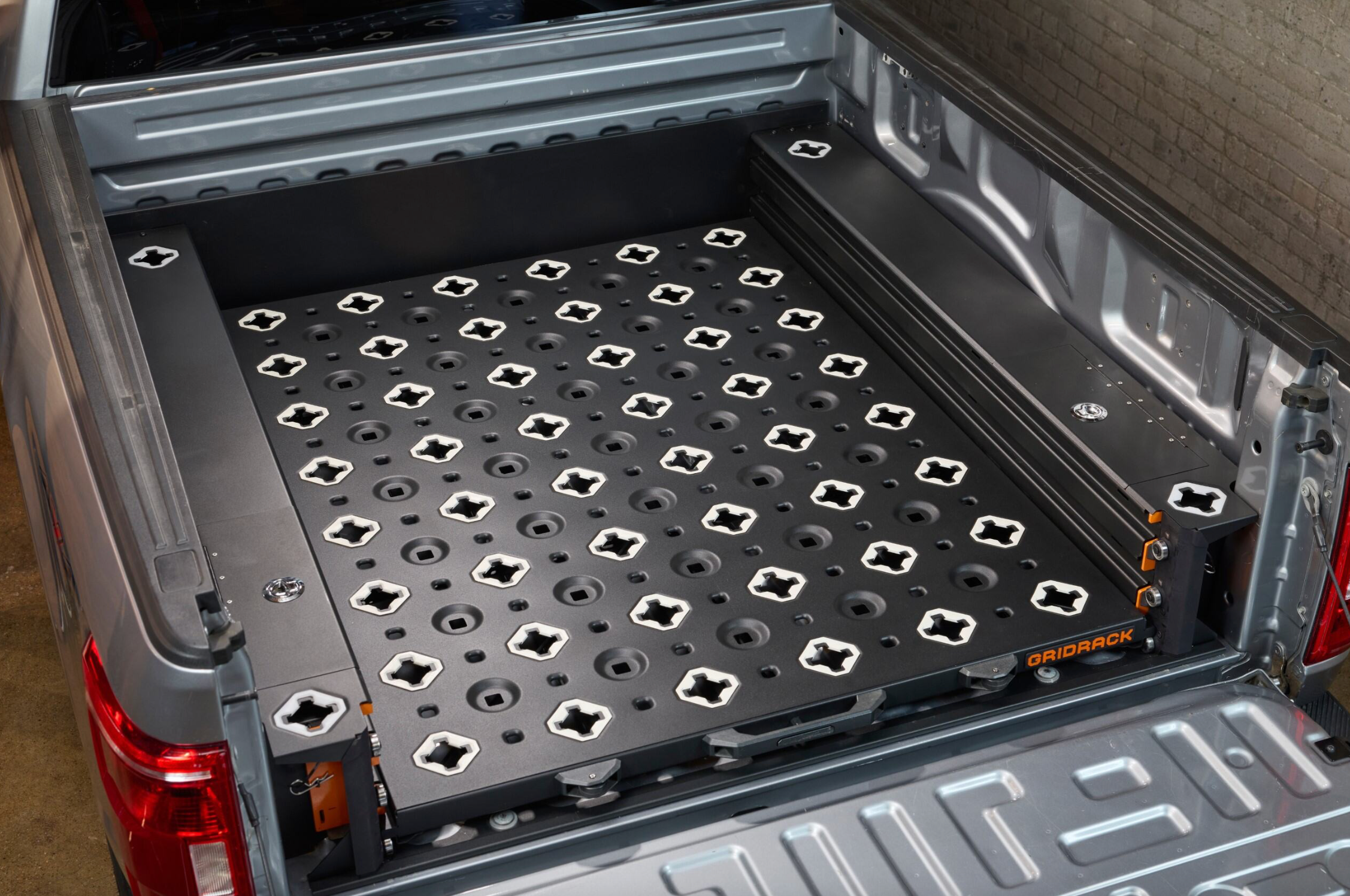

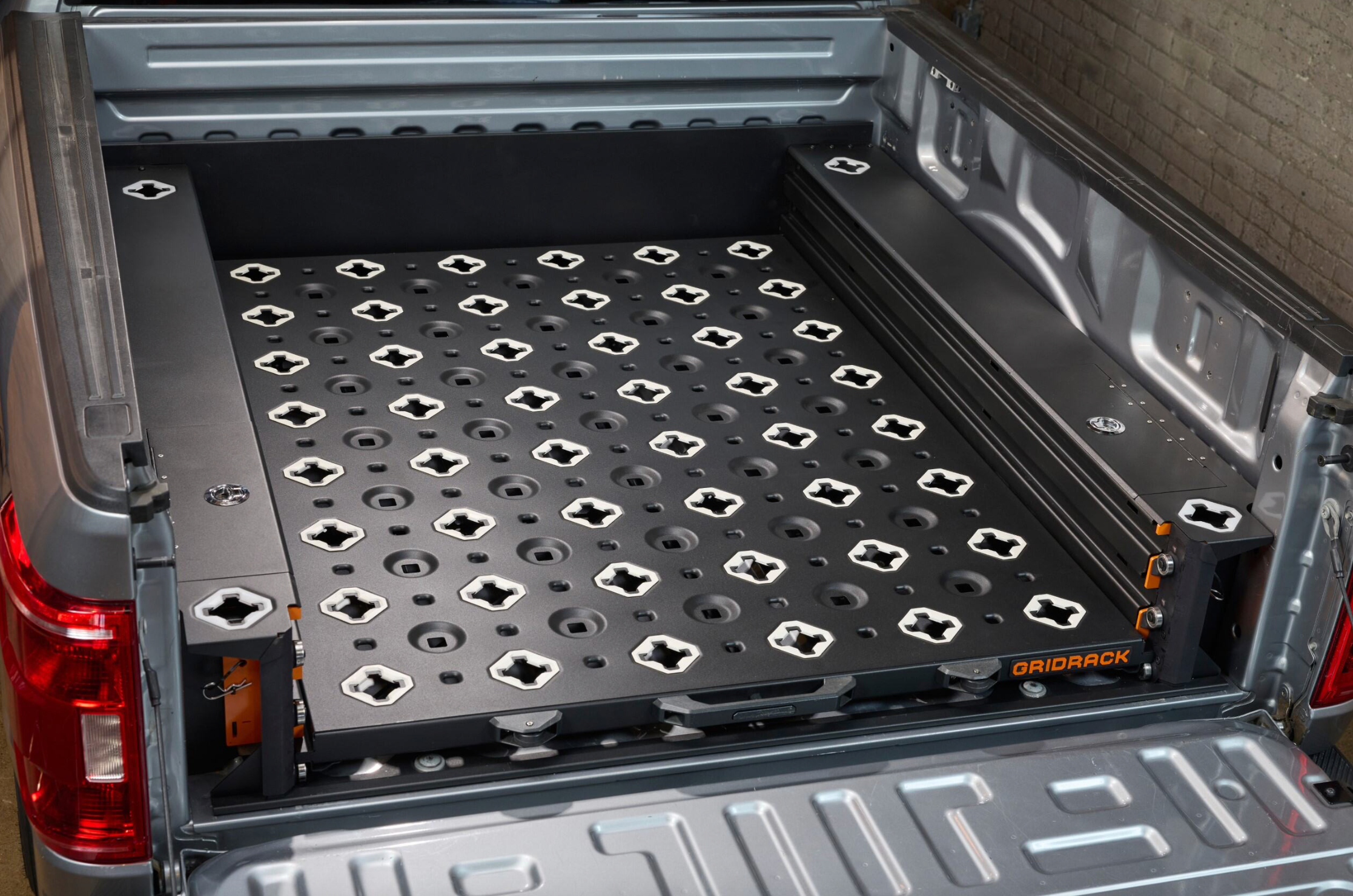

Am I losing space around the wheel wells?
No! The GRIDRACK™ Tri Level Slider install snug around the wheel wells in the bed, taking up very minimal extra space. The space in front (for 6.5’ and 6.75’ beds) or behind (for 5.5’, 6.5’, and 6.75’ beds) the wheel wells is turned into usable, lidded compartments. This space is not watertight, but can be useful for jumper cables, emergency gear, extension cords, and more.
On trucks with Pro Power Onboard, the power outlet can be accessed through a side box compartment.

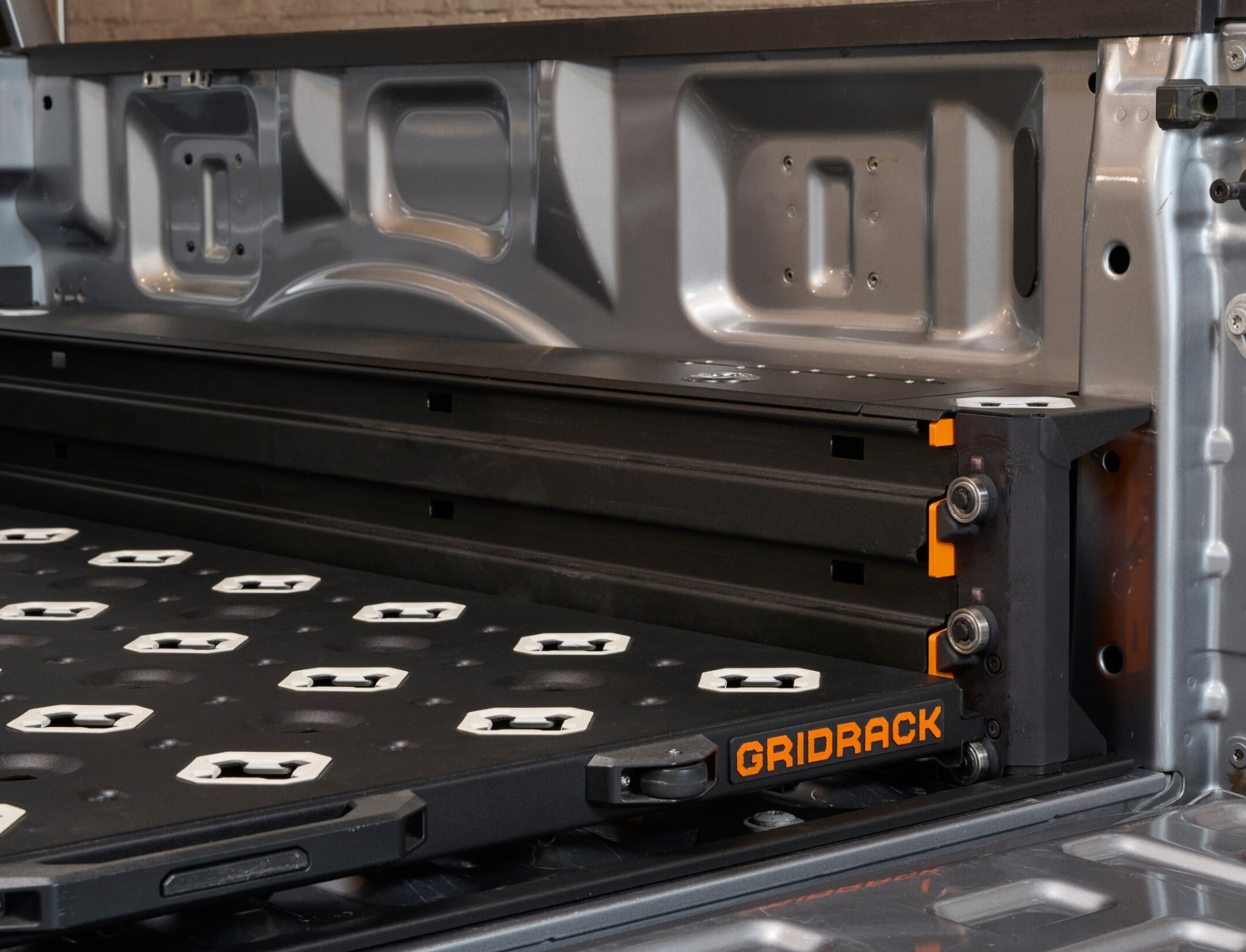

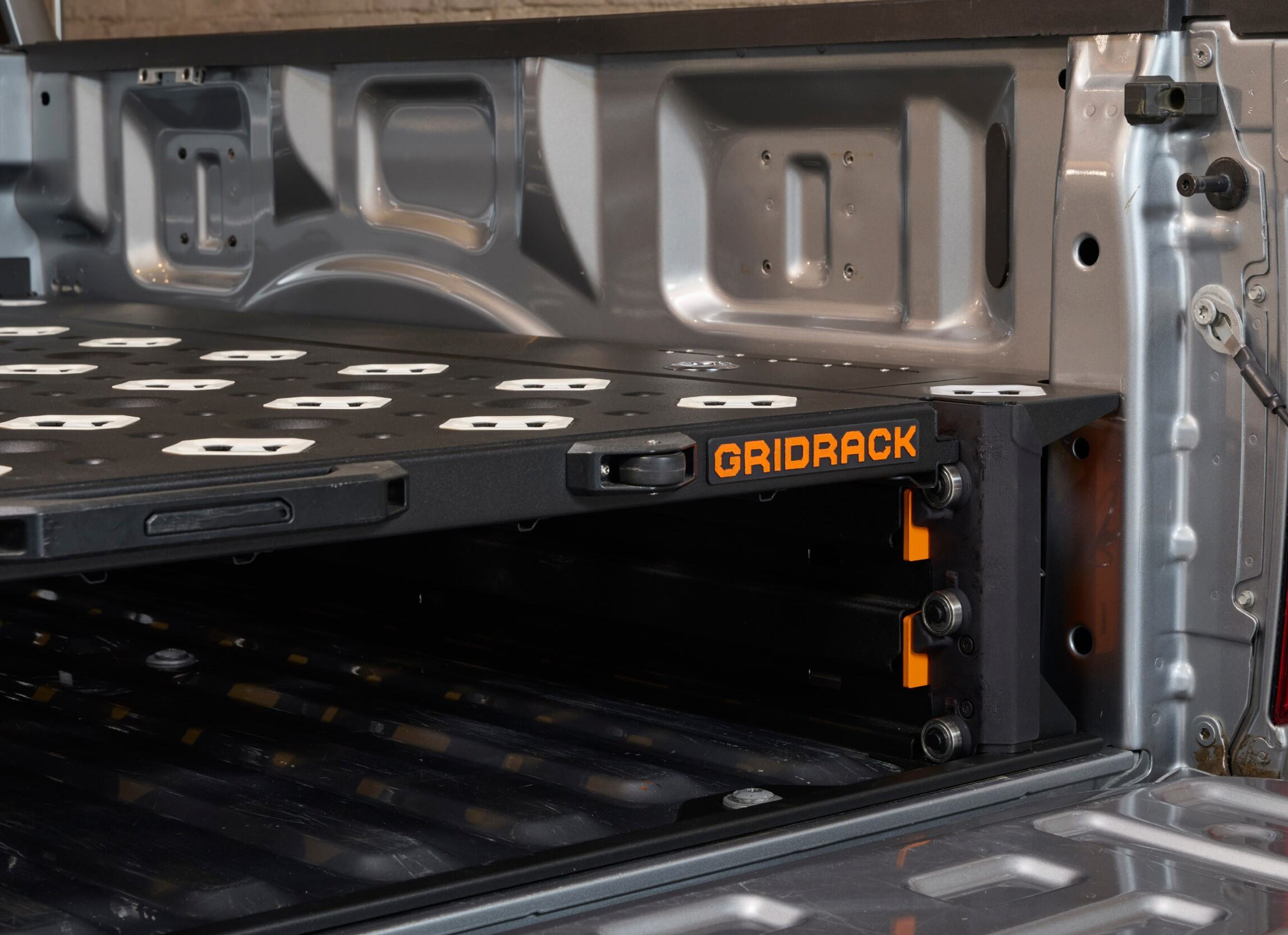

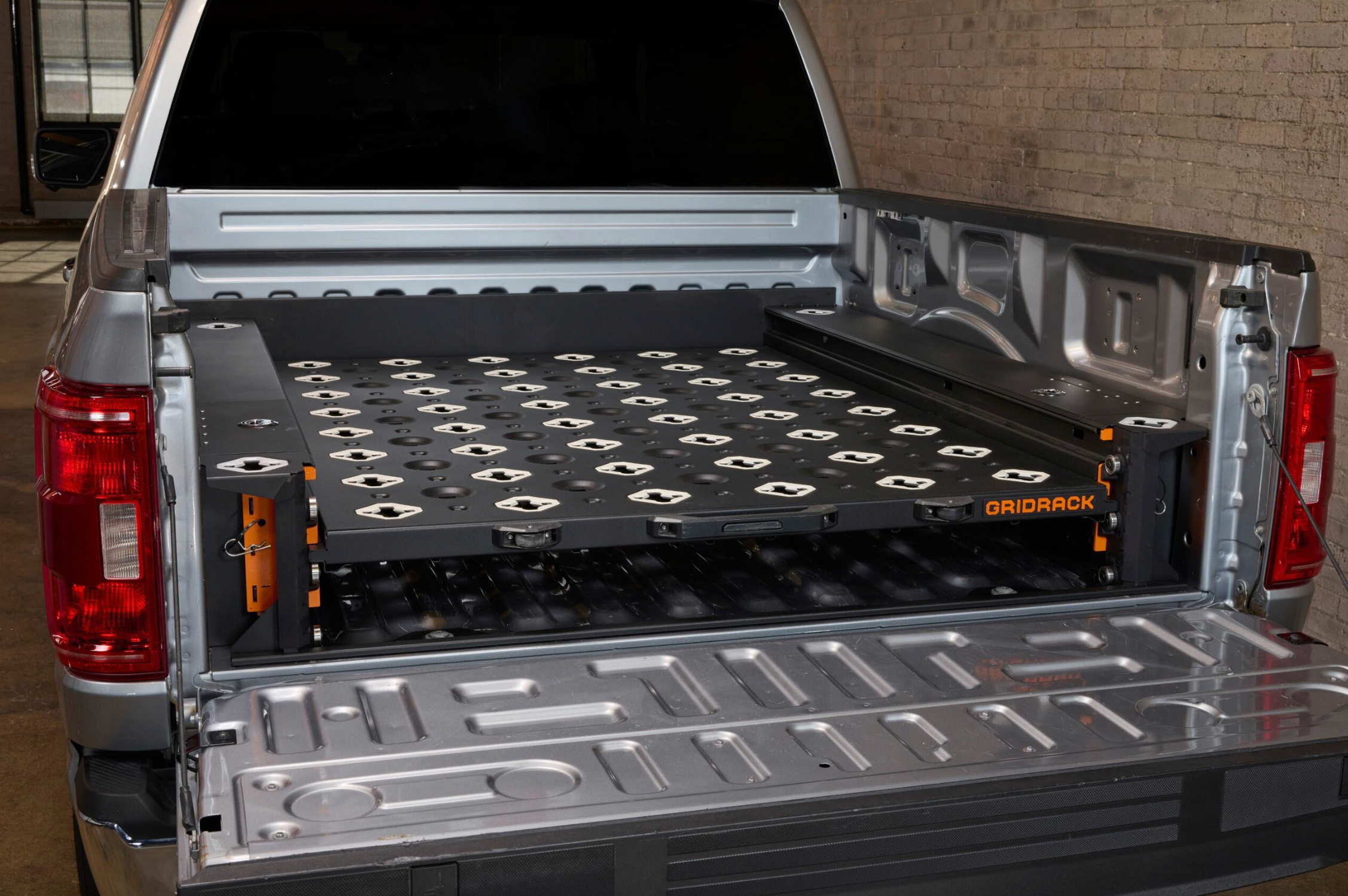

Why are there 3 different height positions, or levels, for the Slider?

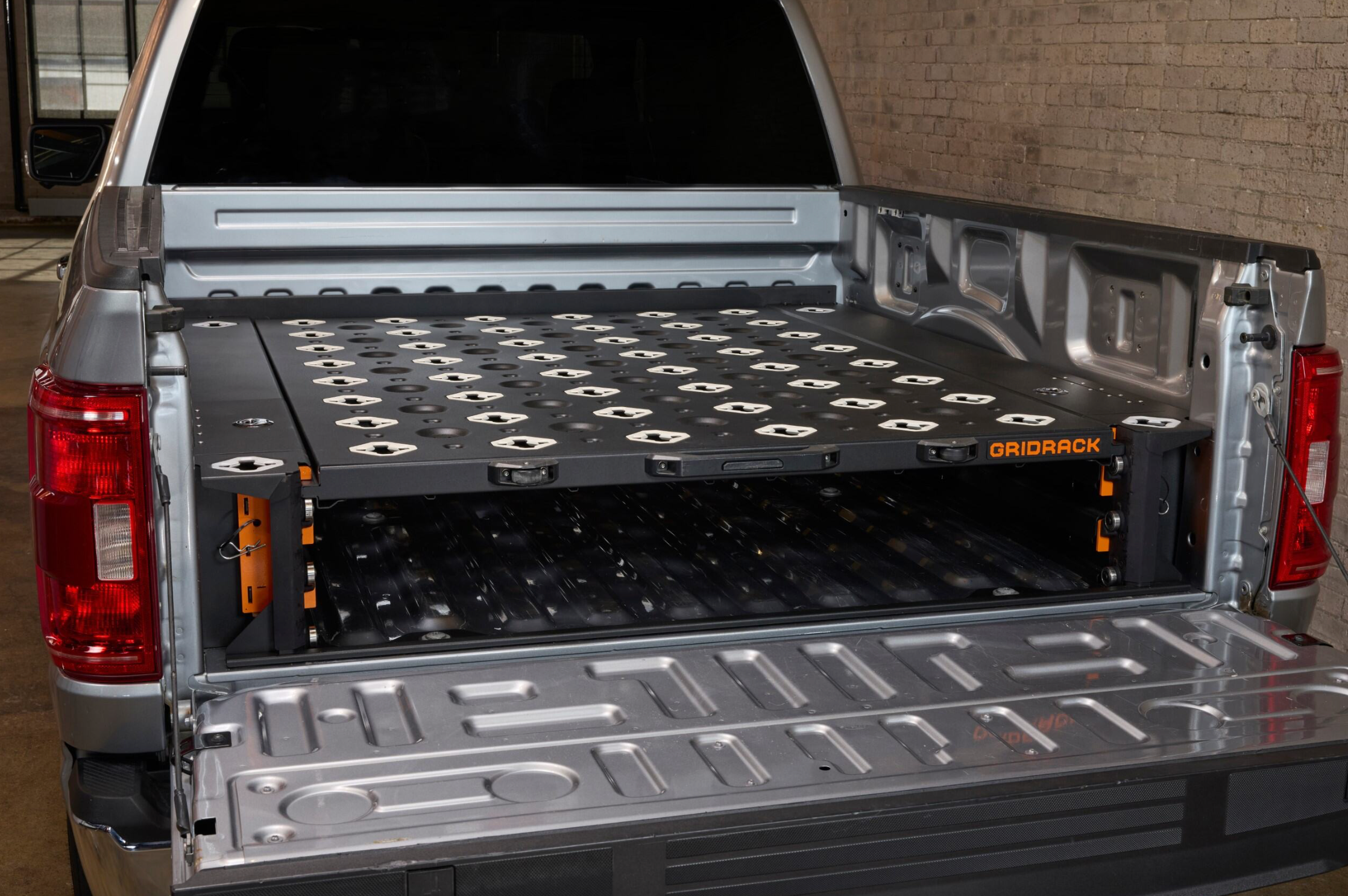

The different levels of GRIDRACK™ Tri Level Slider enable flexibility and personalization with your truck. If you want some space below the slider to store long materials or to keep belongings protected, the slider on the upper level might be your ideal spot. If you want to fit most of your tools and gear on top of the slider, the middle or lower levels of the slider will work well for you. The level that suits you might also be affected by if you have a tonneau cover, bed cap, or both! GRIDRACK™ lets you decide what works best, instead of a fixed-position slider or toolbox that dictates where your gear should always go.
How do I change levels?
In about 1-2 minutes you can reposition your Slider to be at any level. Review the PDF Truck Slider System Installation Instructions for detailed instructions on changing levels.
The basic steps are:
- Remove slider stop plate from each side of the slider
- Pull the slider panel out past the final stop position, do not let go of the slider panel
- Tilt the slider panel down against the tailgate, not all the way to the ground
- Use tailgate as a cantilever as you lift to the desired level
- Slide slider back in
- Replace the slider stop plate on both sides.
- You’re ready to go!
What parts of the GRIDRACK™ Tri Level Slider are removable, and how do I remove them?
The Slider Panel part of GRIDRACK™ Tri Level Slider can be removed as frequently or infrequently as you’d like, but we strongly recommend having a second person help with removal. Review the PDF Truck Slider System Installation Instructions for detailed instructions on removing the slider panel.
Following a similar process to changing levels, the basic steps for panel removal are:
- Remove slider stop plate from each side of the slider
- Pull the slider panel out past the final stop position, do not let go of the slider panel
- Tilt the slider panel down against the tailgate, and carefully lower so that one edge is on the ground
- Work with another person to raise slider so it stands vertically on its wheeled edge
Use rolling casters to move panel to a storage location - Replace slider stop plate on each side
To replace the slider, remove secondary bracket from both sides and reverse this process - Slider side boxes aren’t intended for regular removal, but specific instructions for reverse-installing them are included at the end of the Installation Instructions.
How can I keep it clean?
Trucks get dirty! GRIDRACK™ Tri Level Slider will probably get dusty or muddy and some debris might fall beneath the slider panel. We recommend using a soft cleaning rag, power-washing or spraying, or using a leaf blower or compressed air to clean around your slider. A simple broom will also do the trick for a quick clean! Keeping the rest of your truck clean is up to you, but the good news is the slider won’t interfere with the car wash, if that’s your thing! Or if you like mud, that’s cool too.
